ERC Starting grant, grant agreement No. 713780
The ERC funded Early starter grant “Pho-T-Lyze” targets for solutions of a main problem in the Terahertz range: important tools for component and circuit characterization are highly expensive below 1 THz and barely existent above 1 THz. Electronic systems such as vector network analyzers or spectrum analyzers become exponentially more expensive the higher the frequency. They are further limited in bandwidth to ~50% of the center frequency because frequency extender chains have to be used. Several bands are therefore required to scan frequencies between 100 GHz and 1 THz. Photonic systems offer bandwidths of several THz with a single system at a fraction of the costs of their electronic counterparts. We therefore aim for the development of photonic, circuit-compatible vector network analyzers (PVNAs) and photonic spectrum analyzers (PSA). These systems will be based on telecom-wavelength compatible photomixer technology that works at room temperature.

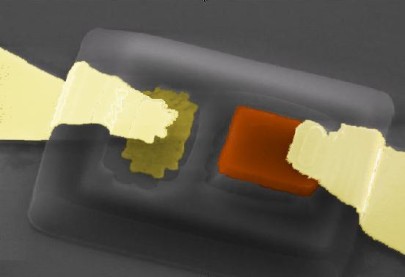

A photomixer device generates an AC photocurrent by absorbing the intensity beating of two slightly detuned (by the desired THz-frequency) laser beams. This (THz)-current can be fed into an antenna which emits the THz-radiation. The device has to be optimized with respect to the extremely high frequency. In particular, the capacitance of the device must be minimized since an RC roll-off results from the antenna (R)-device (C) system. Furthermore, the intrinsic “speed” has to be maximized by reducing the transit time of the optically generated charge carriers through the intrinsic layer. We demonstrated that a p-i-n diode shows ballistic electron motion under optimum field conditions and intrinsic layer lengths: For sufficiently low kinetic energy below the threshold of very efficient sidevalley scattering process, the electron motion is only perturbed by weak scatters such as phonons. We develop fully ballistic p-i-n diodes (FB-PIN) for efficient Terahertz generation where we optimize the intrinsic layer structure for best transport performance with transit-time 3 dB corner frequencies in the range of 1 THz. (opens in new tab) >>
